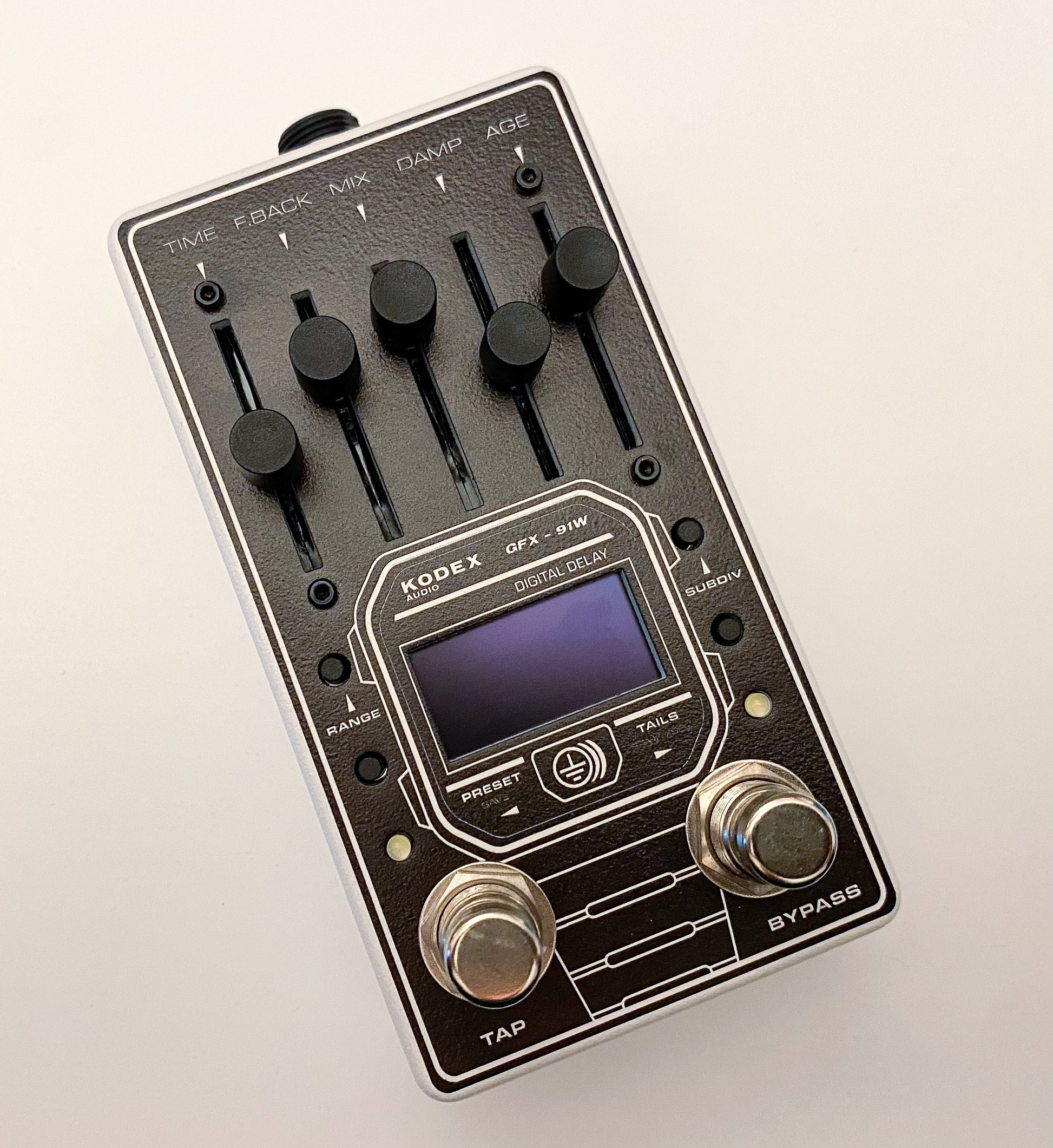

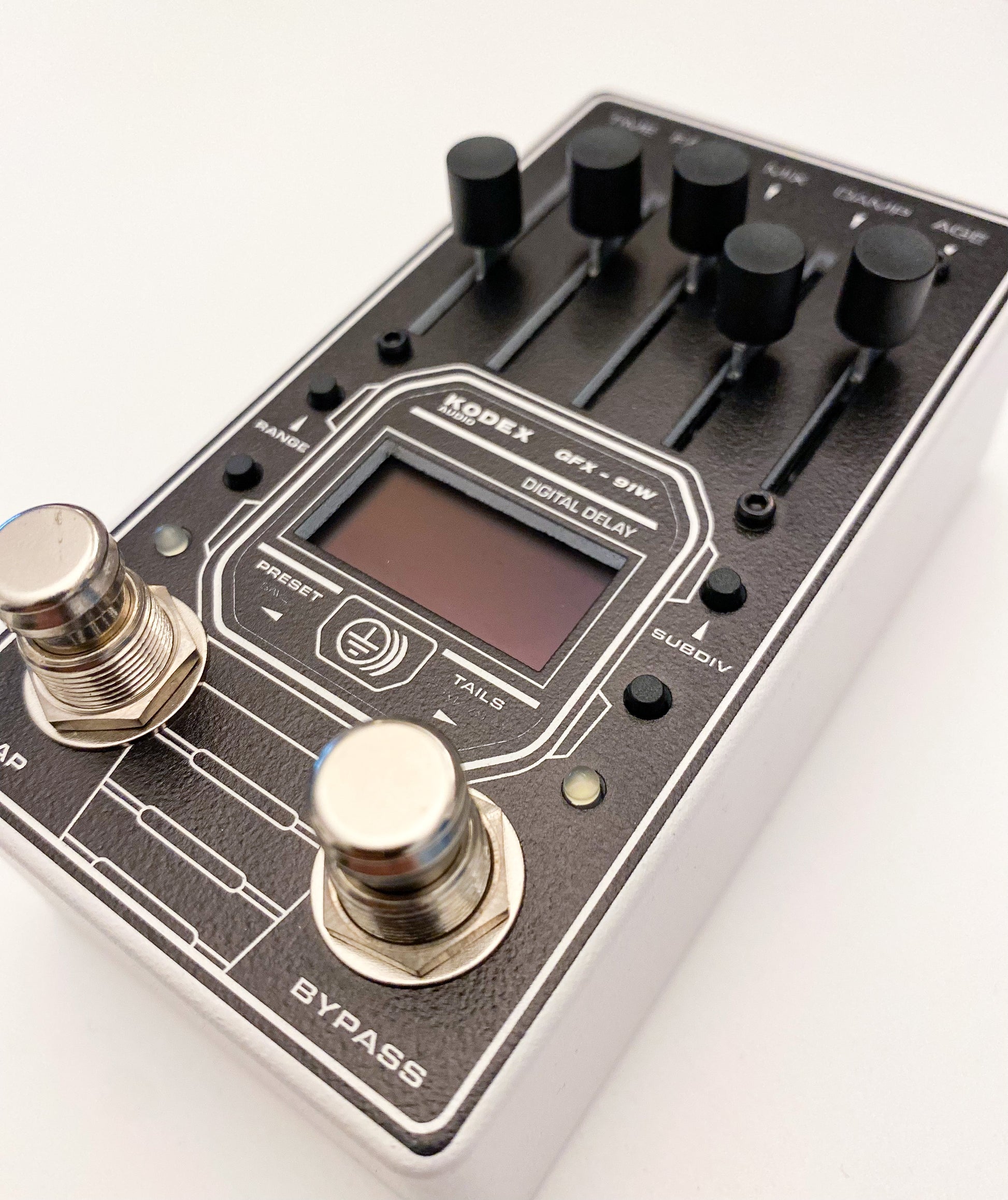

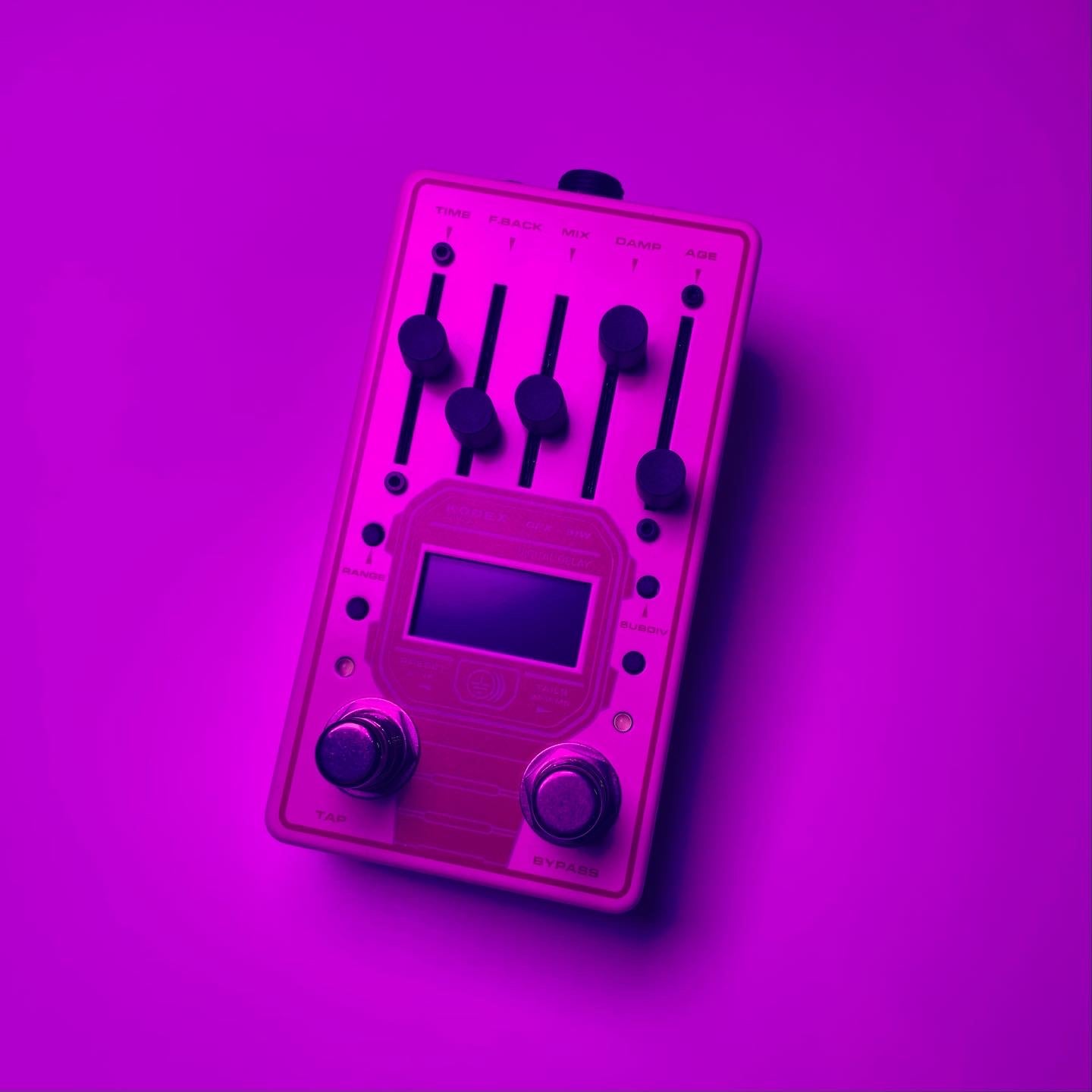

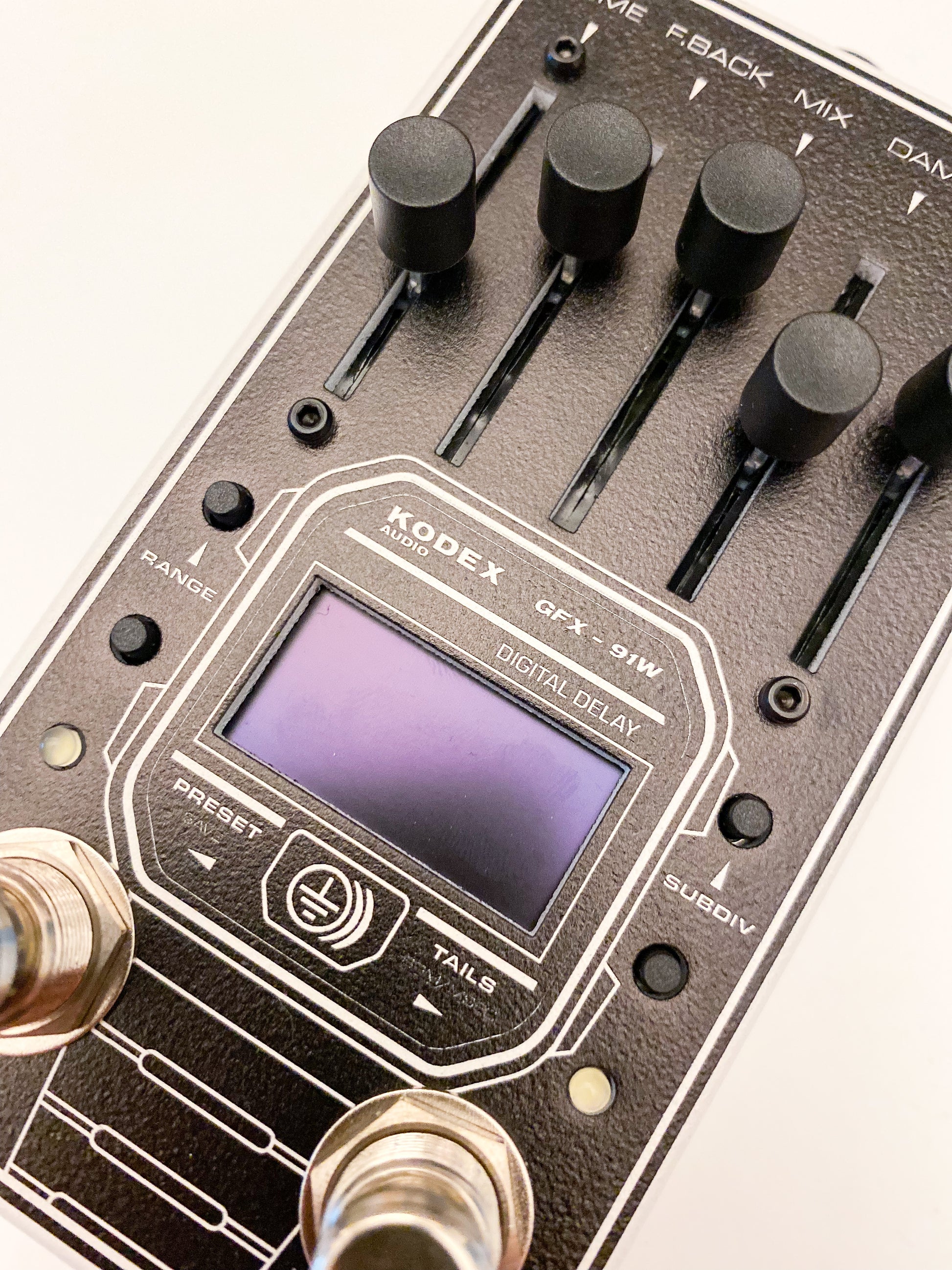

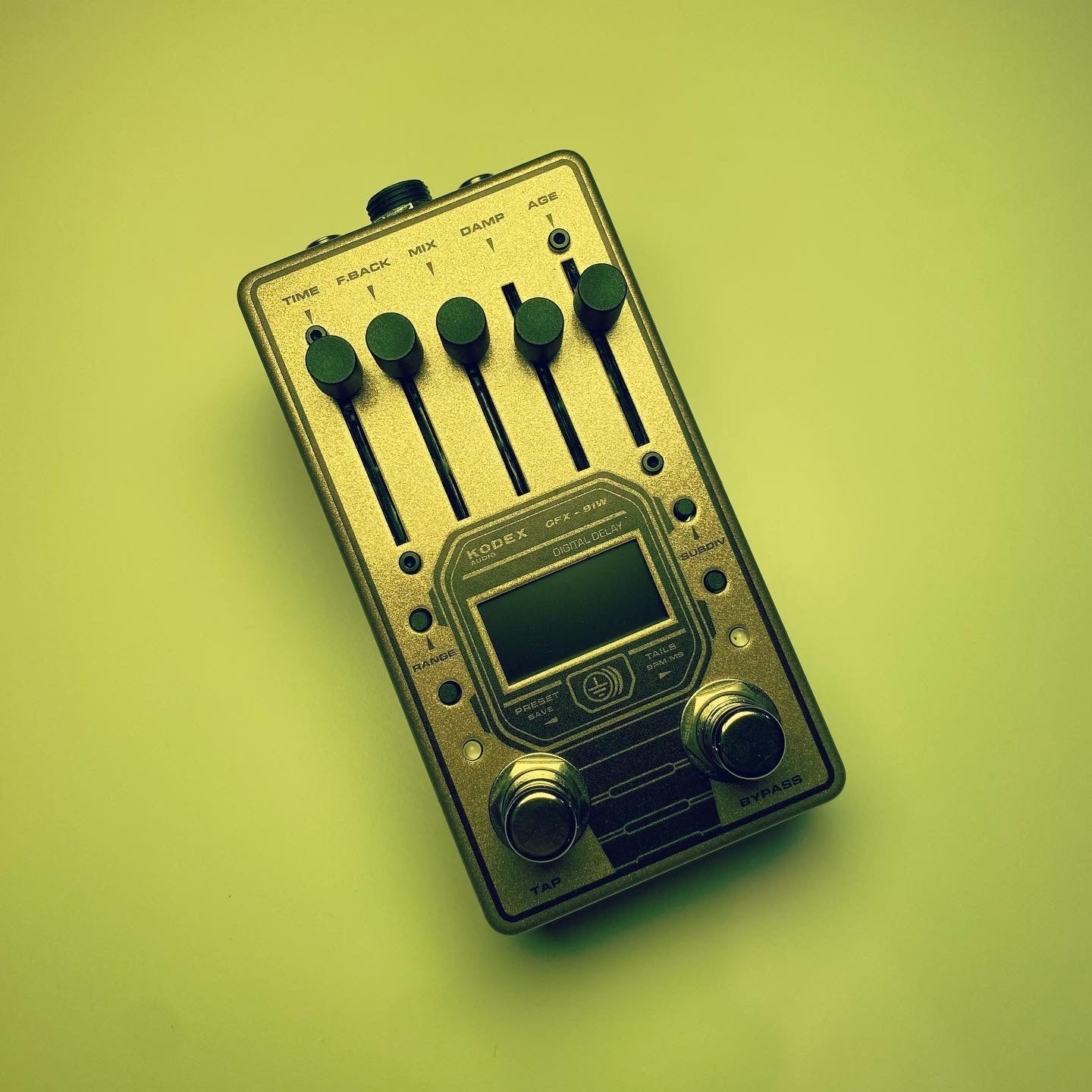

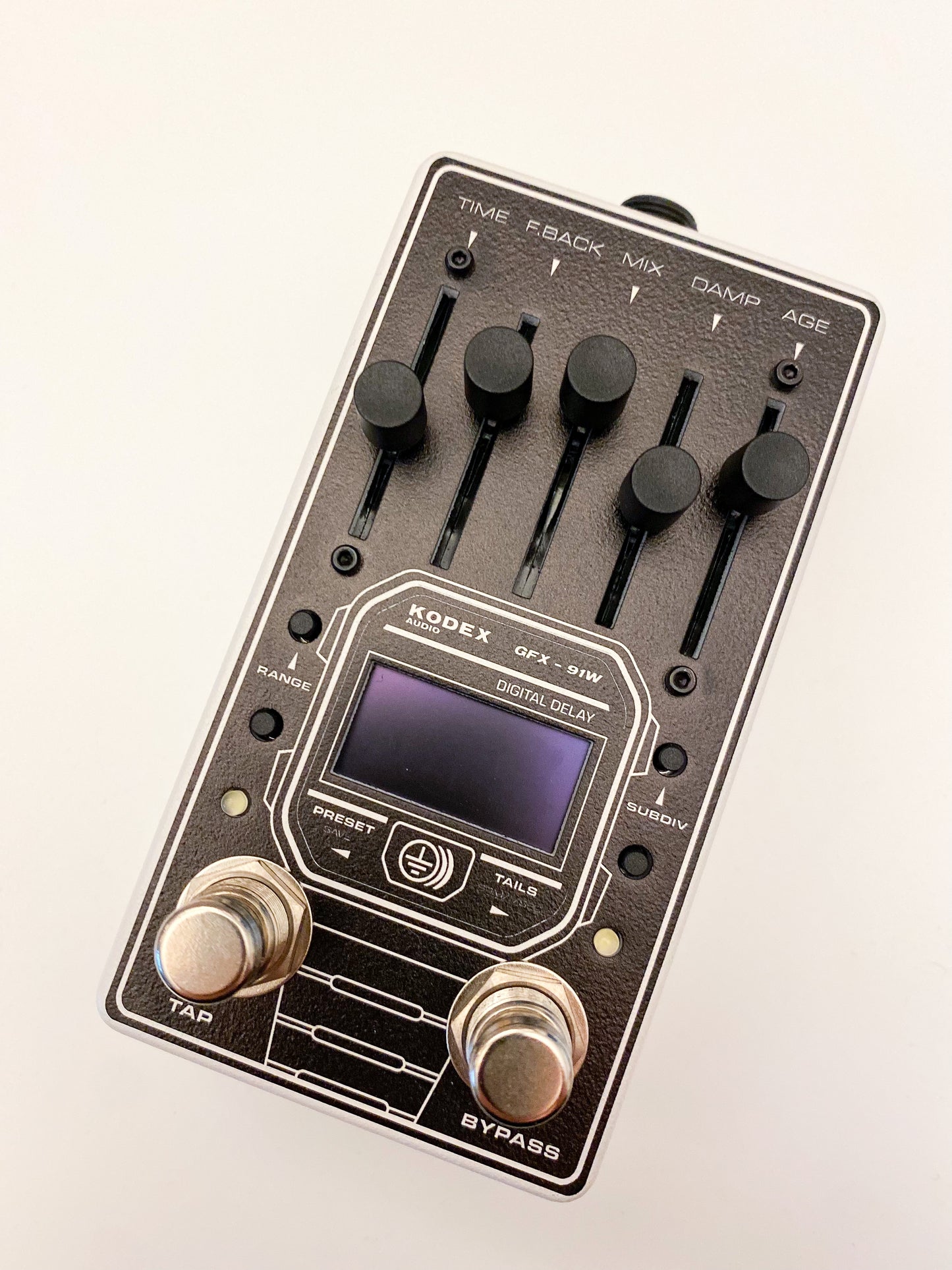

GFX-91w - Digital Delay

This is our GFX-91w, a digital delay with a lot of cool features:

• Display that shows the BPM/MS and other important parameters like the subdivisions, tails status, presets
• Up to 5 presets plus a "manual mode" (0)
• Up to 10 seconds of delay time
• Subdivisions
• Tails
• Time ranges for the time pot
• Tap Tempo
• Smart modulation
• The dry path is analog

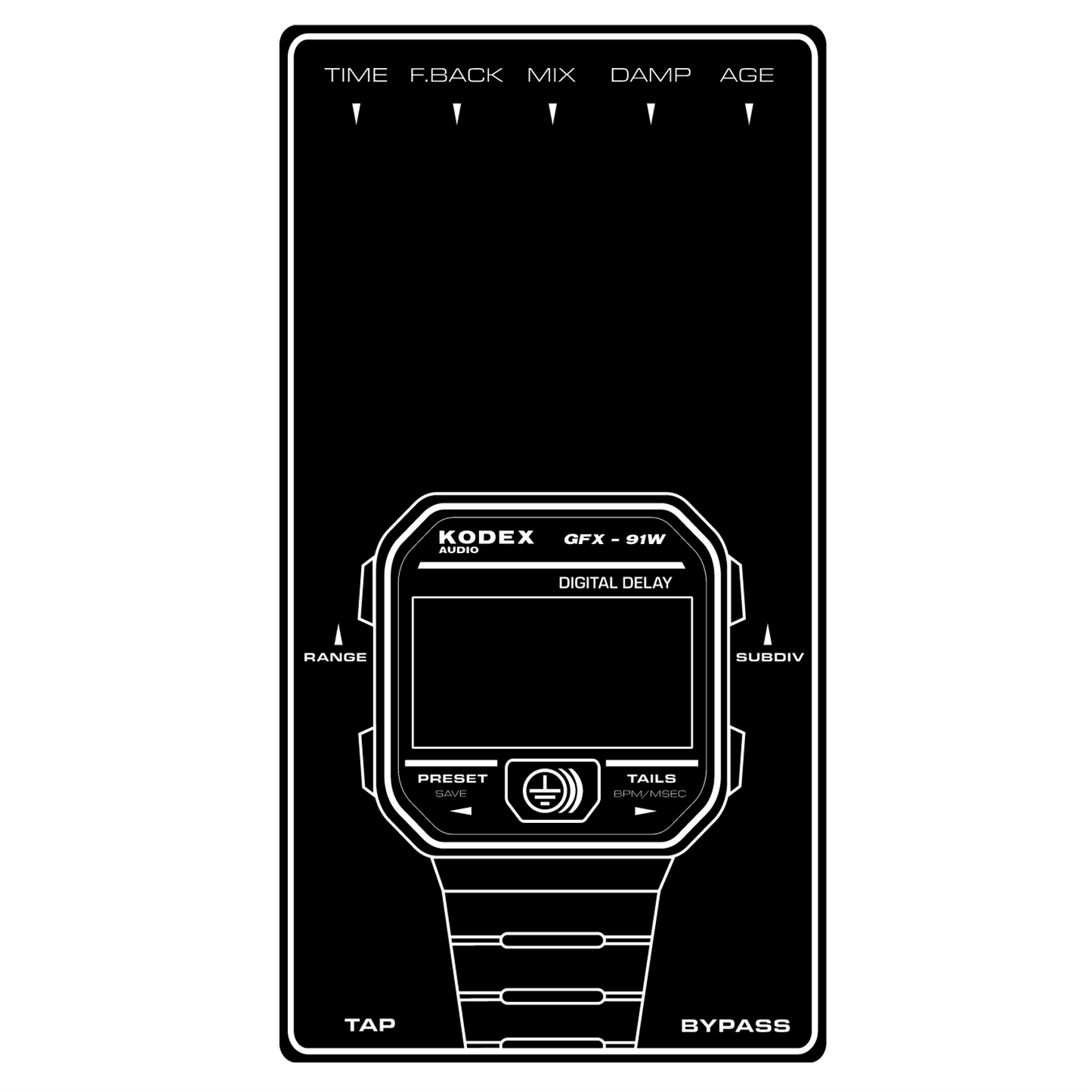

Controls:

Faders

• Time = delay time
• F.Back = repeats
• Mix
• Dampen = LPF on the repeats
• Age = modulation

Switches

• Range = 3 different time ranges for the time pot: 10-400ms, 100-1000ms, 500-9999ms. These are not available in the "BPM" mode.
• Sub = subdivisions: quarter note, half note, eight note, dotted eights note, quarter note triplet, eights note triplet.
• Tails = tails on/off
• Preset = 5 presets + manual mode (0). Press this switch for 3 seconds to save a preset.
• Tap Tempo
• Bypass

Change between MS & BPM: press the "tails" switch for 3 seconds.

Specs:

• 120 x 65 x 40mm
• 1.3'' OLED display
• Soft-touch switches
• Faders with 30mm travel
• 9V DC only (2,1mm, center negative)

• Current draw is 100mA
